RefIE-011
ClientJK Creative Group (Joker, Tychy)
Year2025
Scale1:1
[3D Print][Product][Brand]

JOKER CUP: 200 3D-printed bottle openers

200 multi-colour FDM bottle openers with an embedded opener insert and a keyring hole. Plus branded logo tags and a golf-bag tag (254 mm). Graphic design included.

The opener series in five coloursIE-011 · FIG.01 · The opener series in five colours

Problem

JK Creative Group, which runs the Joker restaurant and golf course in Tychy, needed a run of branded merchandise: 200 JOKER CUP bottle openers plus tags, including a large golf-bag tag. Requirements: consistent branding, a functional opener and repeatable short-run production without injection-mould tooling.

Outcome

Delivered 200 JOKER CUP openers in several colourways, a set of logo tags and a golf-bag tag, graphic design included. A short run produced with 3D printing, without tooling costs.

  1. 01Graphic design and brand artwork for JOKER CUP: the crest silhouette, lettering layout and an equestrian variant for the golf version.
  2. 02CAD modelling of the opener: a body with the embossed crest, a pocket for the opener insert and a keyring hole. A golf-bag tag 254 mm long and 4.5 mm thick.
  3. 03FDM printing of the 200-piece run in multiple colours on the Bambu printer farm, batched in parallel.
  4. 04Quality control, fitting the inserts and delivering the full merchandise set to the client.

Specifications

IE-011
Units
200
Technology
FDM 3D printing
Feature
Opener insert + keyring hole
Golf-bag tag
254 mm
Included
Graphic design
Single opener detail: insert pocket and keyring hole
FIG.02Single opener detail: insert pocket and keyring hole
Technical drawing of the golf-bag tag, 254 mm
FIG.03Technical drawing of the golf-bag tag, 254 mm
Full colour range of the run
FIG.04Full colour range of the run
Close-up of the embossed JOKER CUP crest
FIG.05Close-up of the embossed JOKER CUP crest

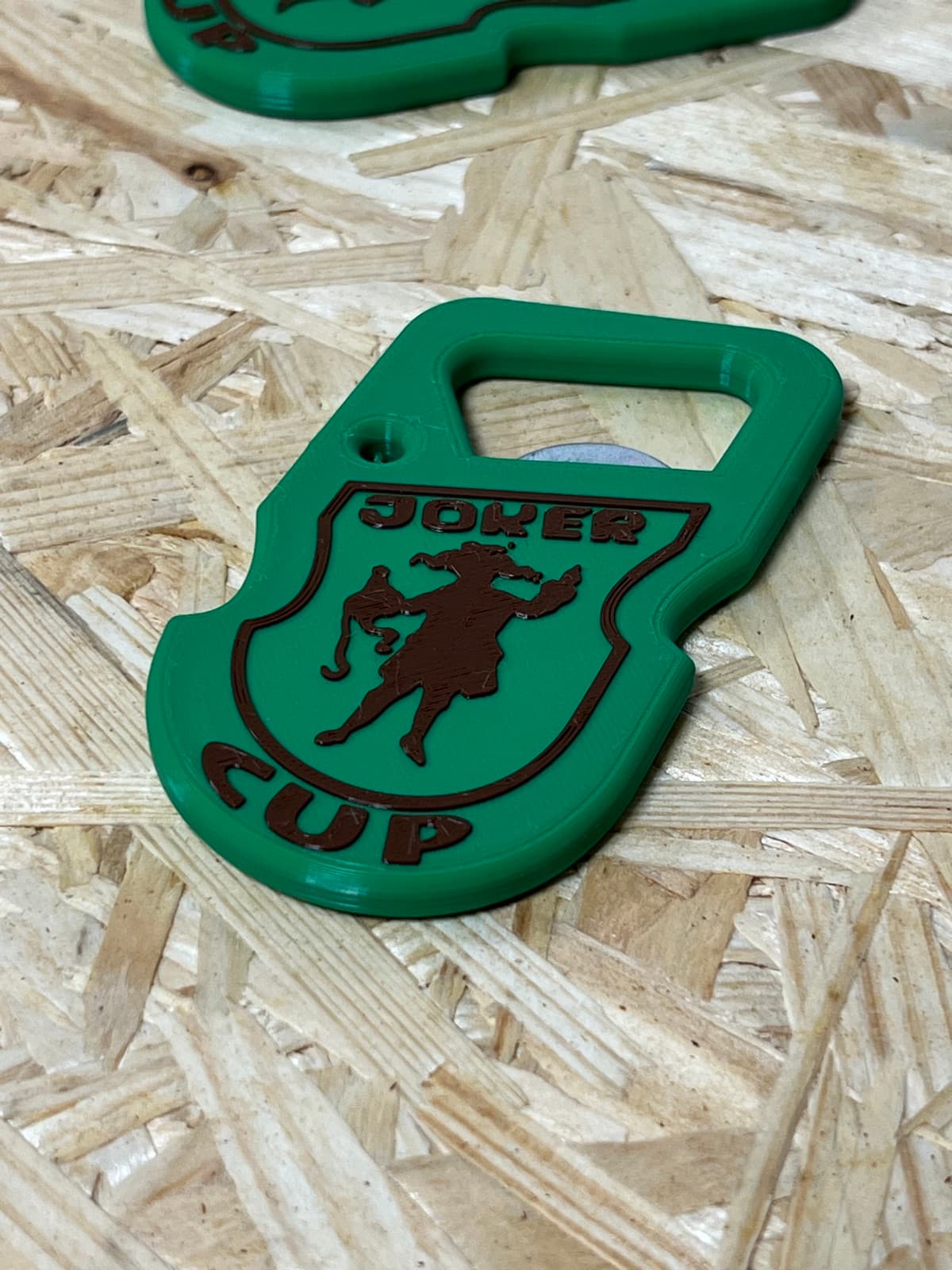

Close-up of a printed JOKER CUP bottle opener showing the embossed crest and lettering on the green body.
FIG.06Close-up of a printed JOKER CUP bottle opener showing the embossed crest and lettering on the green body.

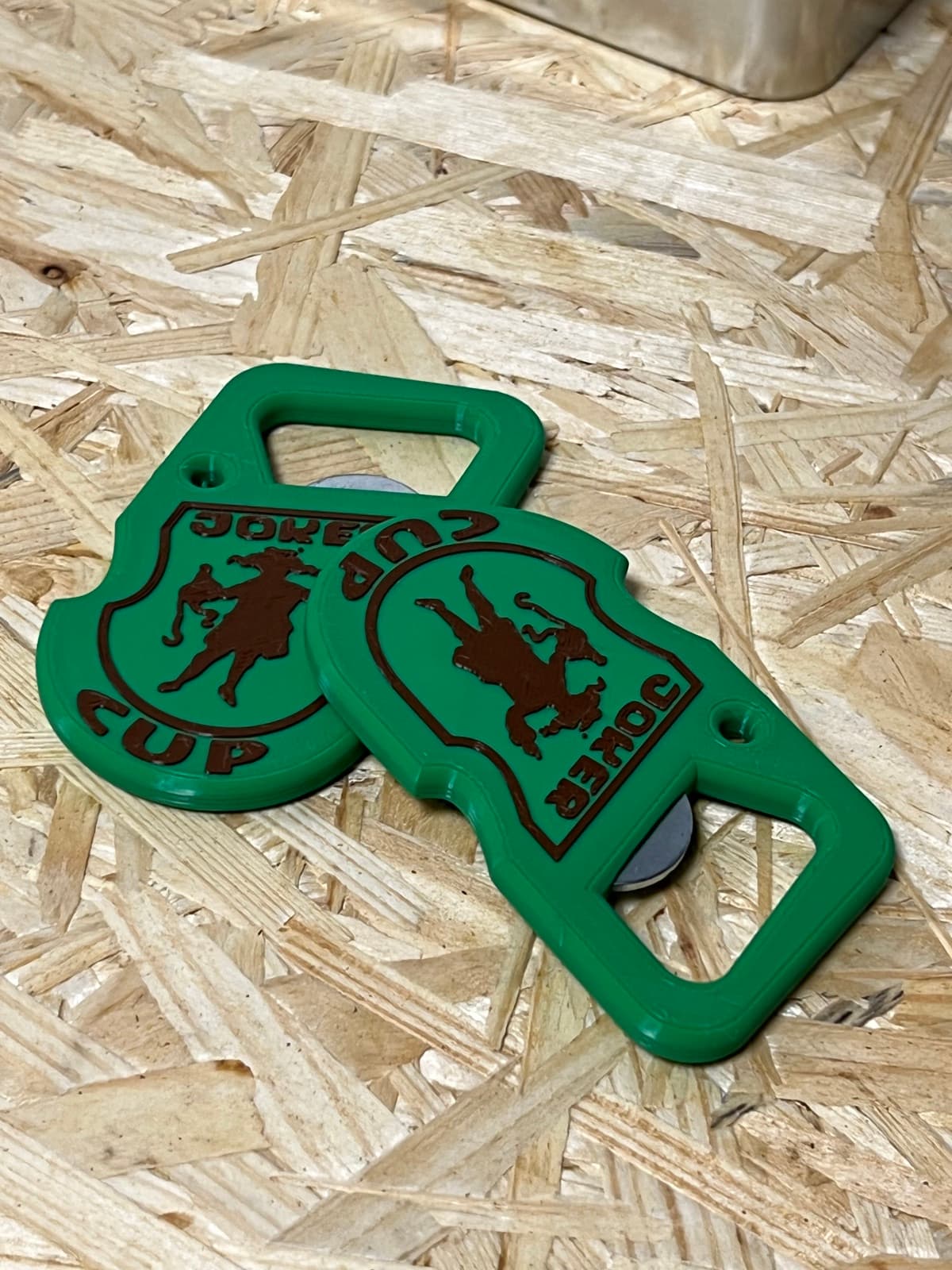

Two green openers, the front with the crest and the back showing the embedded magnet and metal lever.
FIG.07Two green openers, the front with the crest and the back showing the embedded magnet and metal lever.

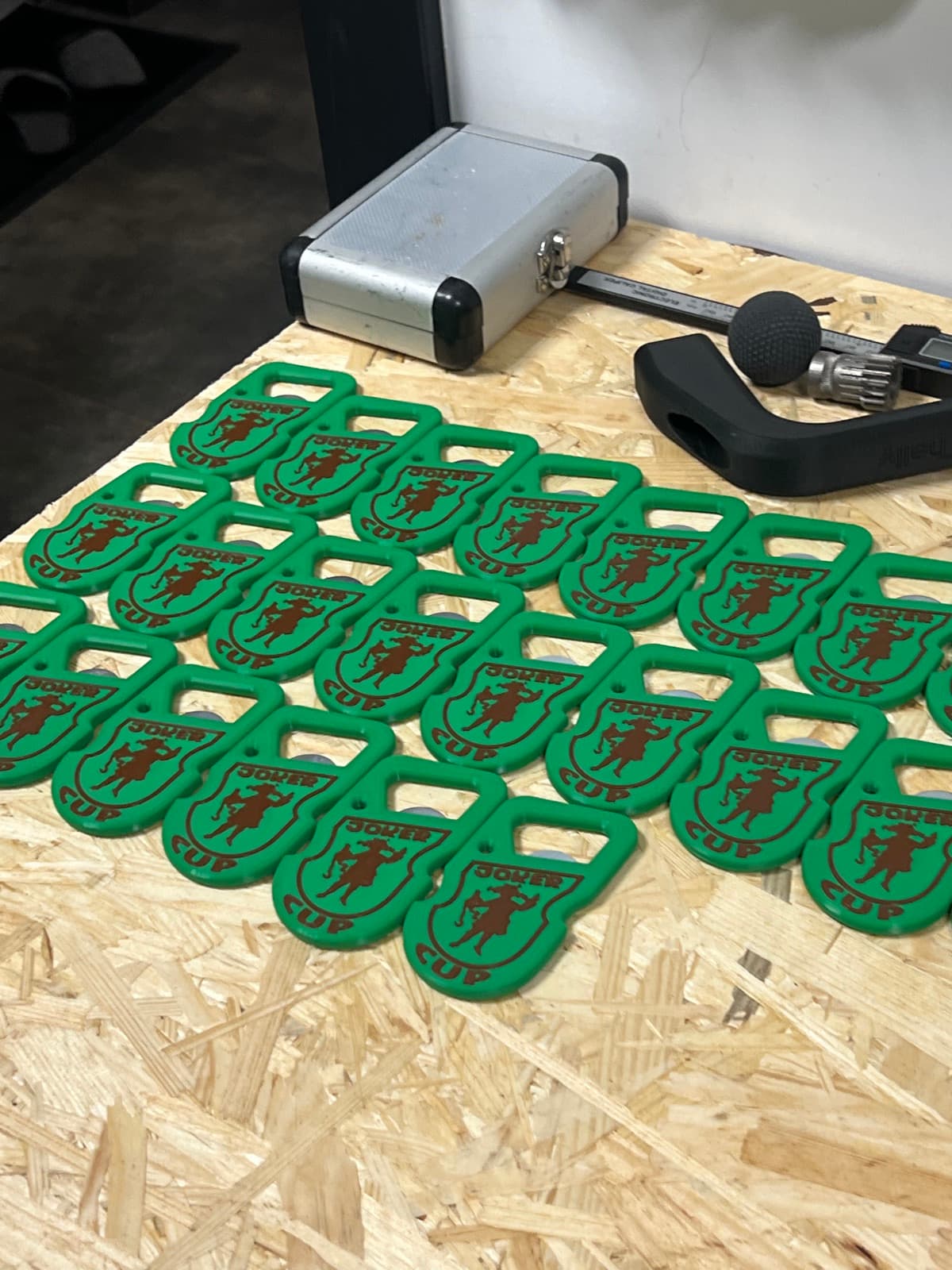

A batch of several dozen green openers laid out on the workbench next to tools.
FIG.08A batch of several dozen green openers laid out on the workbench next to tools.
