Atlantis building wayfinding system

162 apartment numbers and 6 floor signs. Approximately 190 printed digits with mounting templates. Client returned for block 2.

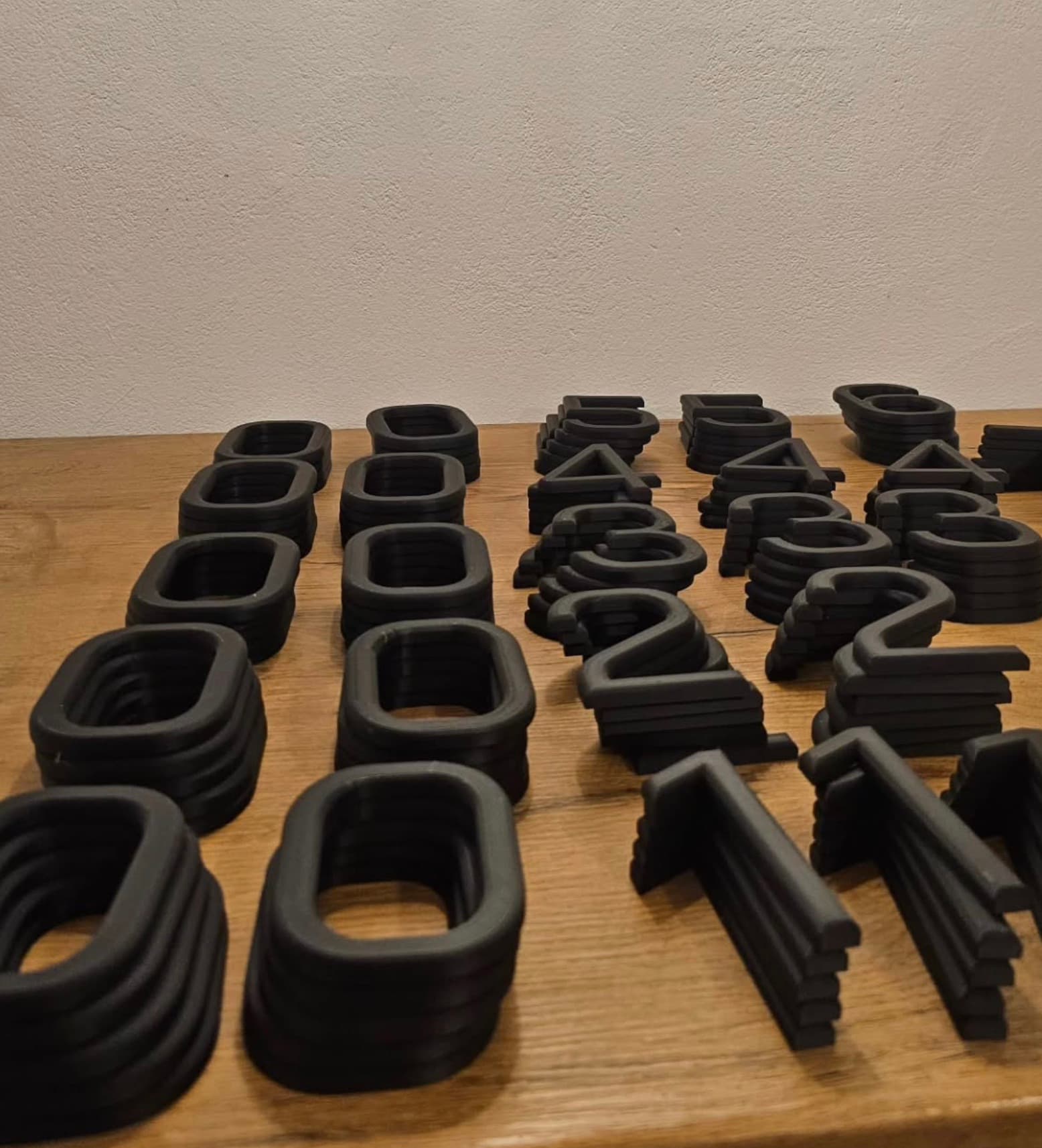

Full batch of printed digits sorted on the workbench before mountingIE-002 · FIG.01 · Full batch of printed digits sorted on the workbench before mounting

Problem

The developer needed a coherent signage system for a new residential building: apartment numbers, floor signs and mounting instructions.

Outcome

A complete signage system for block 1. Production repeatability confirmed by the order for block 2.

  1. 01Number and sign design in Fusion 360. Agreeing the colour system, fonts and dimensions with the developer.
  2. 02Batch production across 6 Bambu printers in parallel. About 190 parts in a single production cycle.
  3. 03Preparing mounting templates and instructions for the construction crew.
  4. 04Delivery to site and support during handover. The client returned with an order for block 2 (55 numbers).

Specifications

IE-002
Units
~190
Floor signs
6
Apartment numbers
162
Block 2 (repeat)
55 numbers

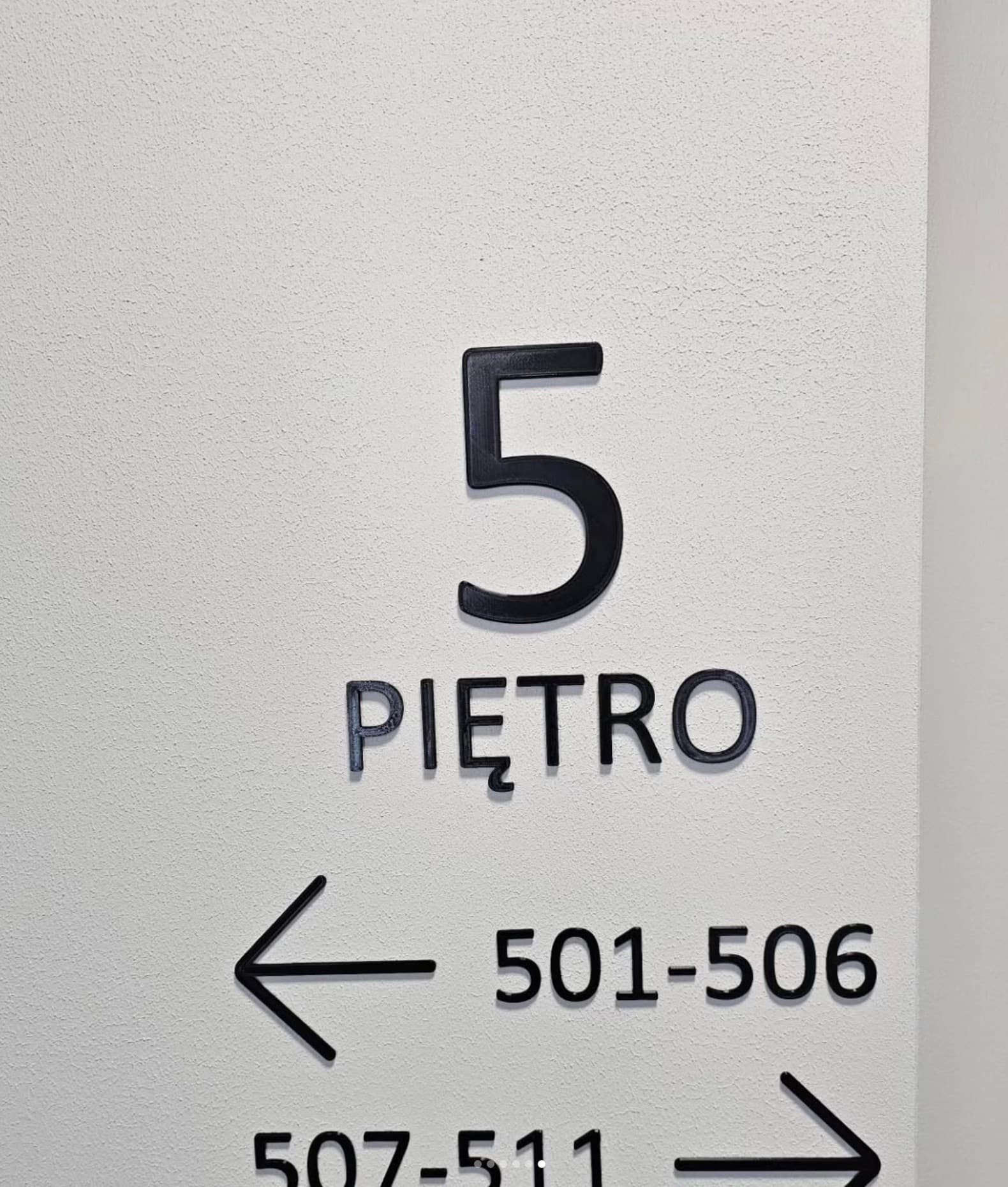

Floor 5 wayfinding sign with directional apartment ranges on the wall
FIG.02Floor 5 wayfinding sign with directional apartment ranges on the wall

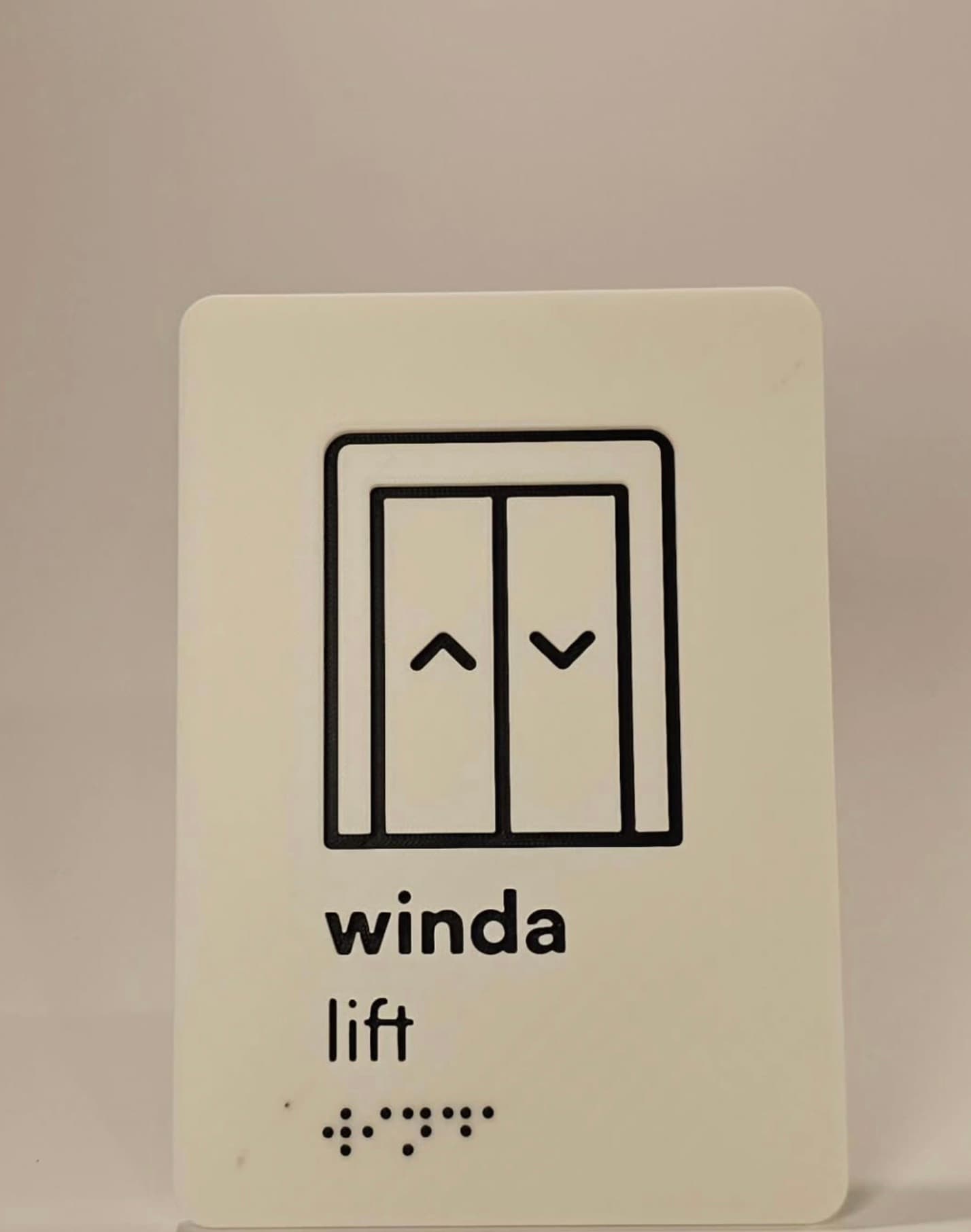

Elevator sign with pictogram and braille from the same signage set
FIG.03Elevator sign with pictogram and braille from the same signage set

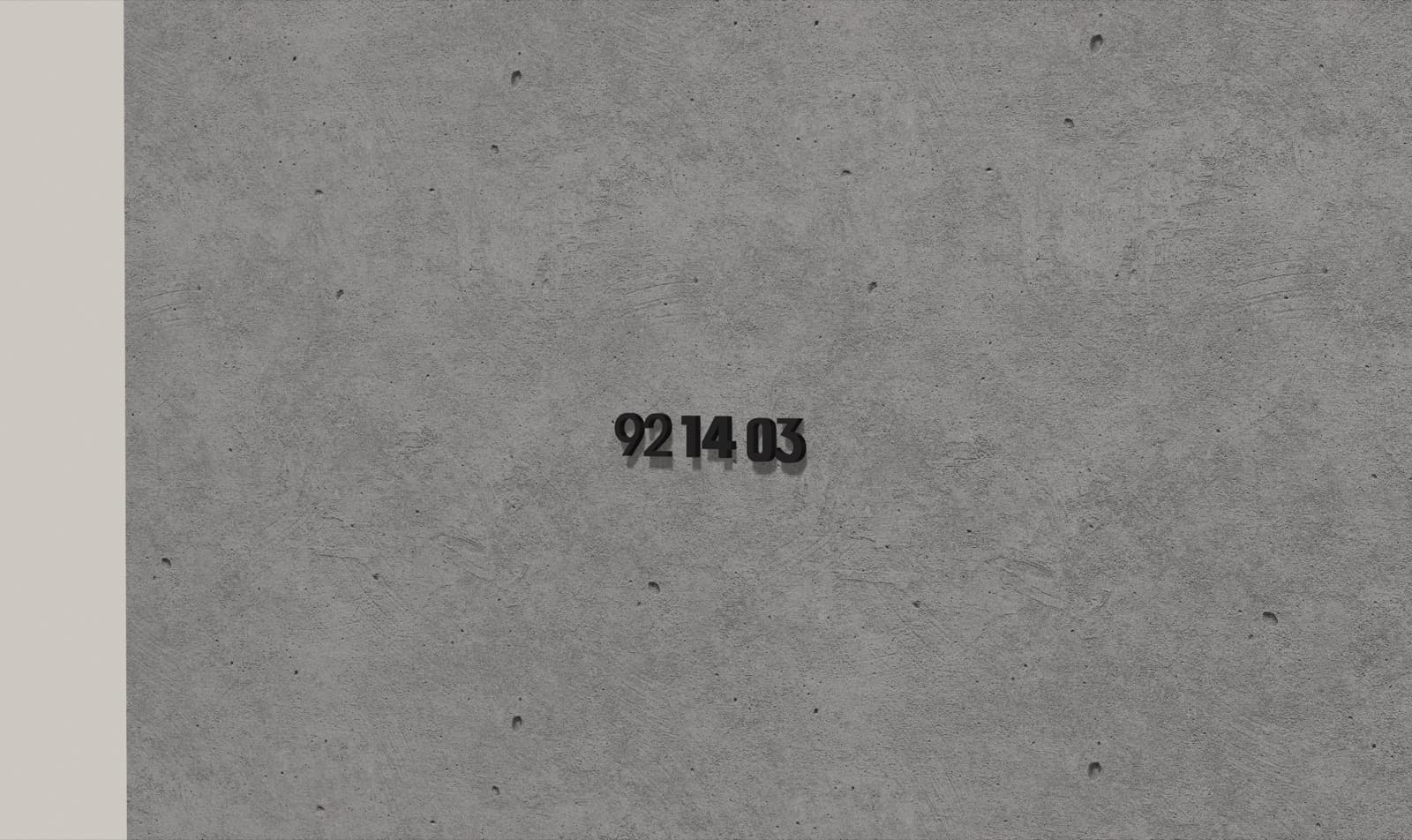

Visualization of the door number set on a concrete surface
FIG.04Visualization of the door number set on a concrete surface
